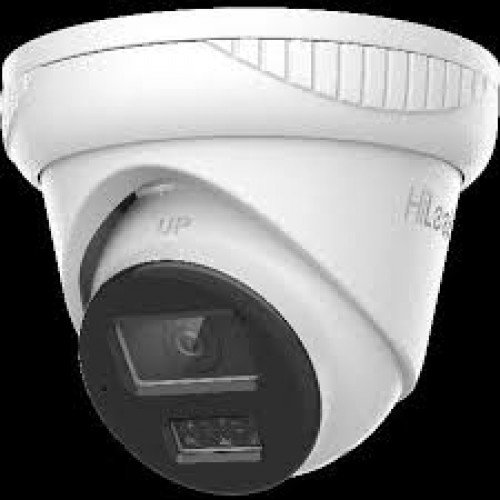

HiLook 6MP IntelliSense Dual IR Outdoor Turret Camera H.265 30m IR Mic IP67 2.8mm - IPC-T263H-MU

New Release! 2025 Model !

• High quality imaging with 6 MP resolution
• Horizontal FOV 119.6°
• Supports Human and Vehicle Intelligent Detection
• Dual IR lights to enhance night vision
• Built-in microphone for real-time audio security
• Water and dust resistant (IP67)
• Efficient H.265+ compression technology

The HiLook HIL-IPC-T263H is a 6MP outdoor turret camera with a 2.8mm fixed lens and an IR range of 30m and includes a mic. It can provide clear imaging against strong back light due to 120dB true WDR technology and is perfect for outdoors as it is water and dust resistant with a IP67 rating. HiLook by Hikvision is a very cost effective range which was introduced to fulfil the needs of entry level customers who operate their business in the lower end of the video surveillance market.

• Image Sensor1/2.4" Progressive Scan CMOS
• Max. Resolution 3200 × 1800
• Min. Illumination Color: 0.001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & Night IR cut filter
• Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

• Lens
• Lens Type Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 119.6°, vertical FOV 60°, diagonal FOV 149°

  4 mm, horizontal FOV 96.8°, vertical FOV 50°, diagonal FOV 115°

• Lens MountM12
• Iris Type Fixed
• ApertureF1.2

• DORI
• DORI

  2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m

  4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m

• Illuminator
• Supplement Light Type IR
• Supplement Light Range Up to 30 m
• Smart Supplement Light Yes
• IR Wavelength850 nm

• Video
• Main Stream

  50 Hz:

  20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz:

  20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 Type Baseline Profile, Main Profile, High Profile
• H.265 Type Main Profile
• Bit Rate Control CBR,VBR
• Region of Interest (ROI)1 fixed region for main stream

• Audio
• Audio Type Mono sound
• Environment Noise Filtering Yes
• Audio Sampling Rate8 kHz/16 kHz
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw)/64 Kbps (G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

• Network
• Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Simultaneous Live View Up to 6 channels
• API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
• Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• ClientiVMS-4200,Hik-Connect
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• Day/Night Switch Day, Night, Auto, Schedule
• Image EnhancementBLC,HLC,3D DNR
• Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Privacy Mask4 programmable polygon privacy masks

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in Microphone Yes
• Reset Key Yes

• Event
• Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception
• Smart Event

  Line crossing detection and intrusion detection (support alarm triggering by specified target types (human and vehicle)

• Linkage Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

• General
• Power

  12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug, reverse polarity protection,

  PoE: IEEE 802.3af, Class 3, max. 6.5 W

• Material Metal
• DimensionØ127.3 mm × 95.9 mm (Ø5.0" × 3.8")
• Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
• Weight Approx. 600 g (1.3 lb.)
• With Package Weight Approx. 909 g (2.0 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language English, Ukrainian
• General Function Heartbeat, anti-banding, mirror, password protection, password reset via email

• Approval
• EMC

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7

• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013
