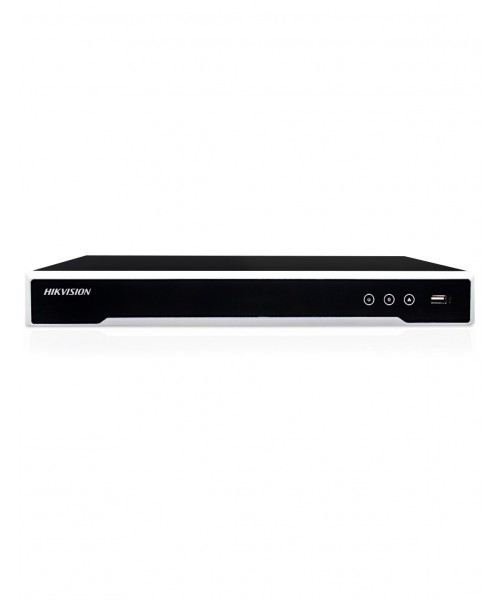

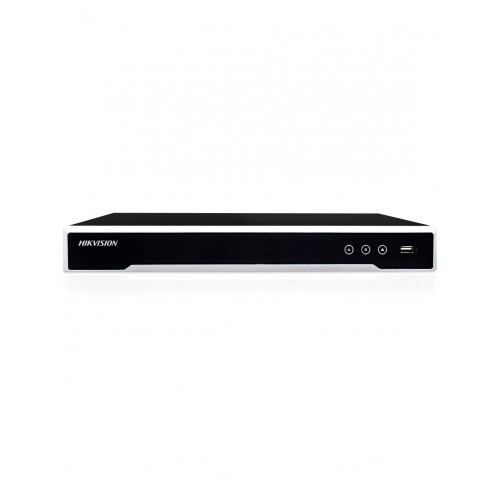

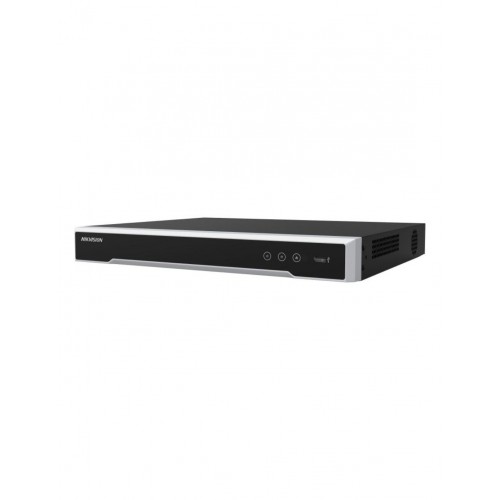

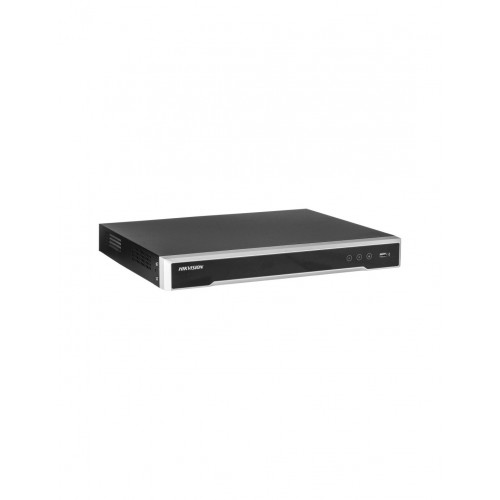

The Hikvision DS-7616NI-M2/16P is a 16-channel 4K NVR (Network Video Recorder) with 16 PoE ports, designed for medium to large-scale surveillance systems. It supports up to 16 IP cameras, H.265+ compression, and offers up to 16TB storage capacity (with 2 SATA interfaces). It features plug-and-play PoE connectivity, HDMI & VGA outputs, and remote access via Hik-Connect for efficient and secure video management.

General

• Video Input: 16 channels (IP cameras)

• PoE Ports: 16 × RJ-45 ports (10/100 Mbps, IEEE 802.3af/at)

• Max Incoming Bandwidth: 160 Mbps

• Max Outgoing Bandwidth: 80 Mbps

• Decoding Capability: Up to 2-ch @ 12 MP / 4-ch @ 8 MP / 8-ch @ 4 MP

Video & Audio

• Compression: H.265+, H.265, H.264+, H.264

• Video Output:

  • HDMI: Up to 4K (3840 × 2160)

  • VGA: Up to 1080p (1920 × 1080)

• Audio Input/Output: 1-ch RCA

Storage

• HDD Slots: 2 × SATA (Up to 10 TB per HDD)

• Max Storage Capacity: 20 TB

Network & Connectivity

• LAN Interface: 1 × RJ-45 1 Gbps Ethernet port

• USB Ports: 2 × USB 2.0, 1 × USB 3.0

• Remote Access: Hik-Connect, Web browser, Mobile App

Power & Environmental

• Power Supply: 100–240V AC

• Power Consumption: ≤ 15W (without HDD)

• Working Temperature: -10°C to 55°C

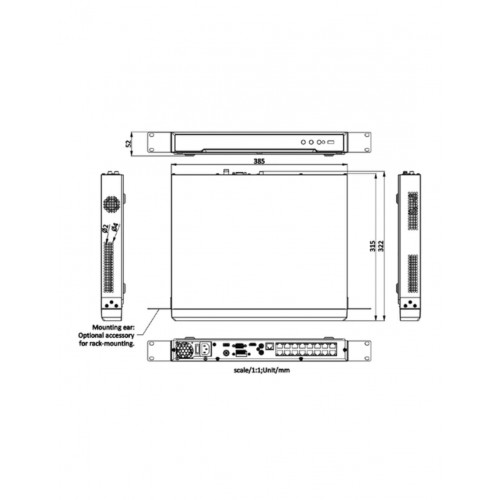

• Dimensions: Approx. 385 × 315 × 52 mm

• Weight: ≤ 3 kg (without HDD)
