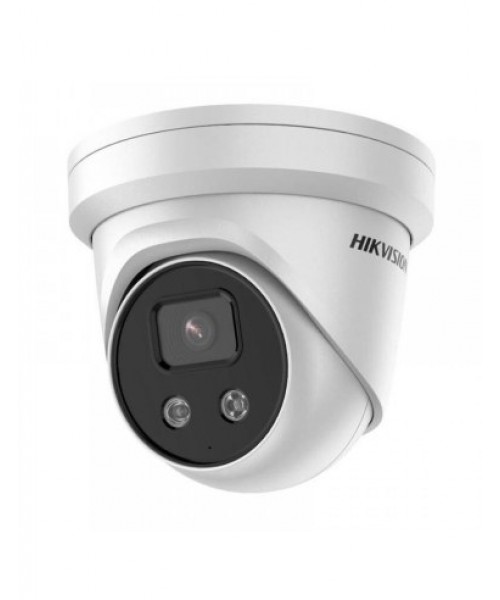

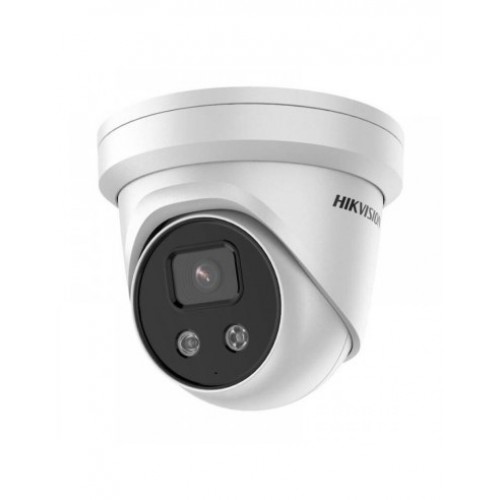

The Hikvision DS-2CD2386G2-ISU/SL is an 8MP (4K) turret network camera with AcuSense technology for precise human and vehicle detection. It features full-color night vision, a built-in microphone for audio recording, and active deterrence with a strobe light and speaker alarm. With 120 dB WDR, H.265+ compression, IP67 weather resistance, and PoE support, this camera provides high-quality, round-the-clock surveillance for both indoor and outdoor security applications.

Camera

• Image Sensor: 8MP Progressive Scan CMOS

• Resolution: 3840 × 2160 (4K)

• Min. Illumination:

  • Color: 0.0005 Lux @ (F1.0, AGC ON)

  • 0 Lux with white light

• Shutter Speed: 1/3 s to 1/100,000 s

• Lens Options: Fixed 2.8mm / 4mm

• Field of View (FOV):

  • 2.8mm: Horizontal 102°, Vertical 53°, Diagonal 122°

  • 4mm: Horizontal 88°, Vertical 44°, Diagonal 104°

• Day/Night Mode: Full-color 24/7

• Wide Dynamic Range (WDR): 120 dB

Illumination & Smart Features

• White Light Range: Up to 30m

• AcuSense Technology: Human & Vehicle Detection

• Active Deterrence: Strobe Light & Speaker Alarm

• Built-in Microphone: Yes

Video & Compression

• Main Stream: 8MP (3840 × 2160) @ 25/30 fps

• Compression: H.265+, H.265, H.264+, H.264

• Smart Encoding: ROI (Region of Interest)

• Bitrate Control: CBR/VBR

Network & Integration

• Ethernet: RJ-45 10M/100M Adaptive

• Protocols: TCP/IP, HTTP, HTTPS, FTP, NTP, RTSP, SMTP, UPnP, etc.

• Storage: MicroSD card slot (up to 256GB)

• ONVIF & Hik-Connect Support

Audio & Alarm

• Built-in Speaker & Microphone: Yes

• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM

• Alarm Input/Output: 1 input / 1 output

General

• Power Supply: 12V DC / PoE (802.3af)

• Power Consumption: Max. 9W

• Operating Conditions: -30°C to 60°C (-22°F to 140°F), Humidity ≤ 95%

• Protection: IP67 (Weatherproof)

• Dimensions: Approx. 138 × 126.3 mm

• Weight: Approx. 700g
