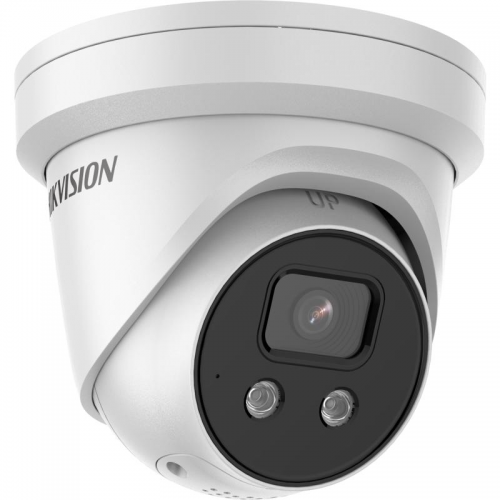

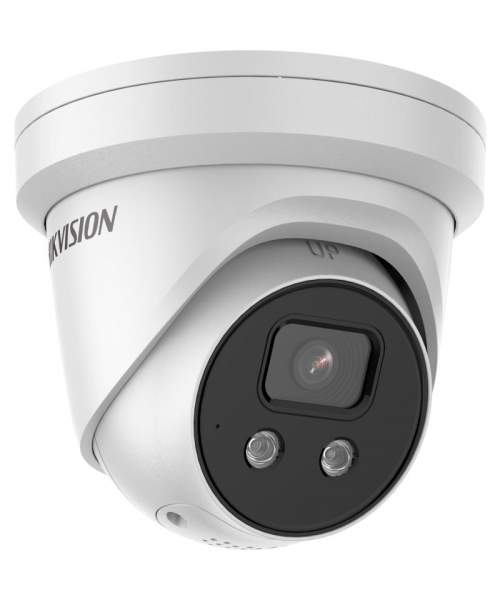

The Hikvision DS-2CD2366G2-ISU/SL is a cutting-edge 6MP Ultra HD turret network camera designed for advanced security and surveillance. Equipped with AcuSense technology and deep learning algorithms, it enhances detection accuracy by effectively distinguishing between human and vehicle targets, reducing false alarms. This camera features a built-in microphone for high-quality audio capture and an active strobe light and alarm siren for real-time deterrence. With excellent low-light performance, 120 dB wide dynamic range (WDR), and infrared (IR) night vision up to 30 meters, the DS-2CD2366G2-ISU/SL ensures clear and reliable monitoring in diverse environments. Its IP67 weatherproof rating makes it ideal for both indoor and outdoor applications, providing robust security around the clock.

Key Features

• Resolution: 6MP (3072 x 2048) for high-definition imaging.

• Sensor Type: 1/1.8" Progressive Scan CMOS.

• Lens: 2.8mm / 4mm / 6mm fixed lens options.

• Image Quality: Ultra high-definition with advanced imaging technology for enhanced clarity and detail.

• Low Light Performance: Powered by DarkFighter technology for superior performance in low-light environments, providing high-quality color images even under challenging lighting conditions.

Video and Audio

• Compression Standard:

  • H.265+ video compression for efficient storage and bandwidth management.

  • H.265, H.264, H.264+ also supported.

• Video Output: Simultaneous video stream for local monitoring.

• Audio Input/Output: Built-in microphone for real-time audio surveillance (depending on the model - ISU variant).

• WDR: 120dB True WDR (Wide Dynamic Range) for clear imaging in high-contrast lighting conditions, helping to eliminate overexposed or underexposed areas in complex environments.

Intelligent Features

• Deep Learning-Based Analytics:

  • Human and Vehicle Detection: Focuses on human and vehicle target classification, providing more accurate detection and reducing false alarms.

  • Intrusion Detection: Alerts triggered when objects enter or exit defined areas.

  • Line Crossing Detection: Sends alerts when a pre-defined virtual line is crossed.

  • Region Entrance/Exiting: Detects objects entering or exiting a specific area.

Connectivity

• PoE (Power over Ethernet): Simplifies installation by combining power and data transmission into a single cable, reducing wiring complexity.

• Network Interface: Supports RJ45 Ethernet port for network connectivity.

• Remote Access: Compatible with the Hik-Connect app for remote monitoring and management of the camera from smartphones or tablets.

• Onvif Compliance: Ensures compatibility with other ONVIF-compliant third-party systems.

Design & Durability

• Weather Resistance: IP67-rated for waterproof and dustproof performance, ensuring reliable operation in extreme weather conditions.

• Vandal Resistant: IK10-rated for impact resistance, offering protection against physical damage in harsh environments.

• Operating Temperature Range: -30°C to +60°C, capable of functioning in a wide range of temperatures.

• Power Supply:

  • 12V DC ±25% or PoE (IEEE 802.3af) for power options.

  • Power consumption: Max 12W.

Additional Features

• Smart IR Technology:

  • Built-in infrared (IR) LEDs for up to 30 meters of night vision, ensuring clear surveillance in complete darkness.

• Mounting Options: Flexible mounting options for ceiling or wall installation.

• Built-in Microphone: Depending on the model, for audio surveillance in real-time (ISU variant).

• 3D DNR (Digital Noise Reduction): Reduces noise in low-light conditions, enhancing image clarity.

Physical Dimensions

• Dimensions (L x W x H): 103.5 mm x 103.5 mm x 72.3 mm

• Weight: Approximately 500g.
