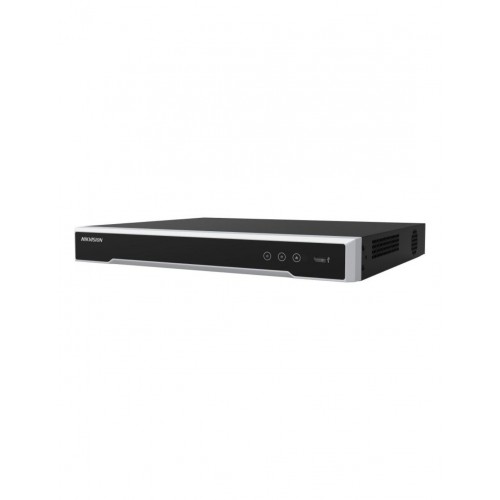

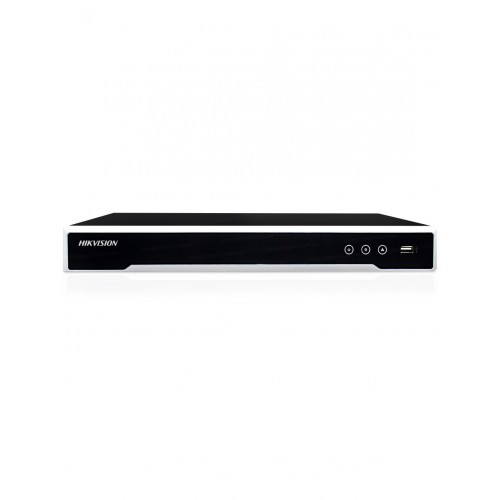

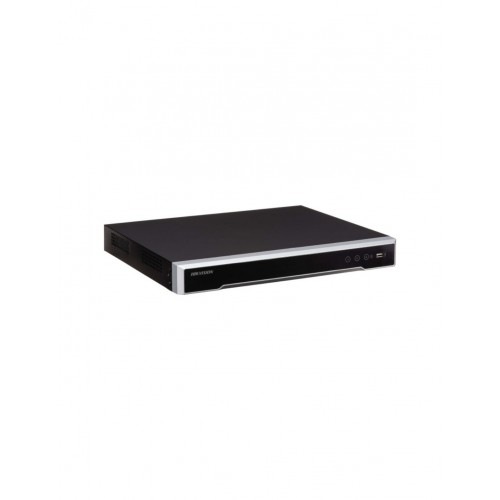

The Hikvision DS-7608NI-M2-8P with 4TB Hard Drive is an 8-channel 4K Network Video Recorder (NVR) with 8 built-in PoE ports for easy plug-and-play camera connections. It supports up to 12MP resolution per channel, H.265+ video compression for optimized storage, and dual SATA interfaces for up to 20TB of storage. Featuring HDMI and VGA outputs, smart analytics, and Hik-Connect remote access, this NVR is ideal for medium to large-scale surveillance systems, ensuring high-quality and efficient video recording.

Video & Recording

• Video Input: 8 channels

• Max Input Resolution: Up to 12MP per channel

• Decoding Capability:

  • 1-ch @ 12MP (30 fps)

  • 1-ch @ 8MP (30 fps)

  • 4-ch @ 4MP (30 fps)

  • 8-ch @ 1080p (30 fps)

• Video Compression: H.265+, H.265, H.264+, H.264

Storage & Backup

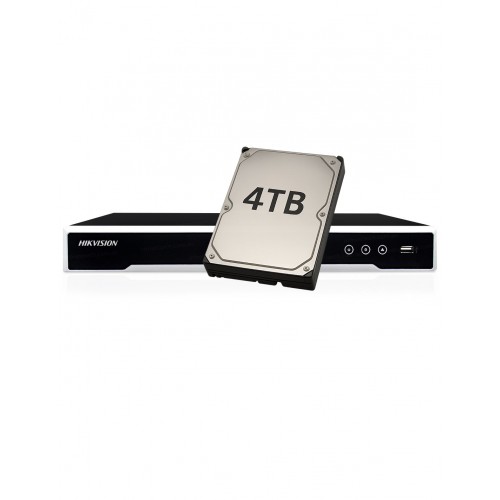

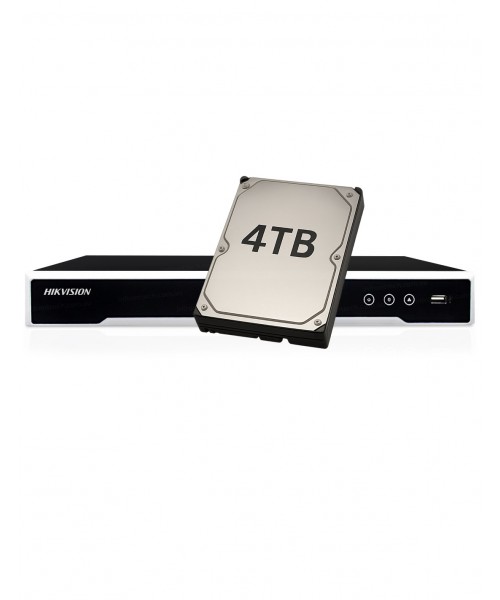

• Hard Drive: 2 SATA interfaces, 4TB Hard Drive installed - up to 10TB per drive (total 20TB)

• USB Ports: 2 × USB 2.0, 1 × USB 3.0

• Backup Method: USB drive, network download

Network & Connectivity

• PoE Ports: 8 × 10/100 Mbps PoE Ports

• PoE Standard: 802.3af/at, max 30W per port, total 120W

• Ethernet Port: 1 × 10/100/1000 Mbps RJ-45

• Supported Protocols: TCP/IP, DHCP, NTP, HTTPS, FTP, RTSP, UPnP, etc.

• Remote Access: Hik-Connect app, Web browser, iVMS-4200 software

• ONVIF Support: Yes

Video Output & Interface

• HDMI Output: 1 × 4K (3840 × 2160)

• VGA Output: 1 × 1080p

• Audio I/O: 1 input / 1 output

General

• Power Supply: 48V DC

• Power Consumption: ≤ 15W (without HDD and PoE)

• Operating Temperature: -10°C to 55°C (14°F to 131°F)

• Humidity: 10% to 90% (non-condensing)

• Dimensions: Approx. 385 × 315 × 52 mm

• Weight: ≤ 2 kg (without HDD)
