The DVR8-5000 with 2TB Hard Drive is a robust solution for secure video surveillance. With a formidable 96Mbps bandwidth, it ensures smooth and high-quality video streaming, capturing every detail with clarity. Designed to accommodate up to a 10TB HDD, it offers ample storage capacity, ensuring extensive footage retention without compromise
| * | 8-Channel 4K DVR: Supports up to 8MP ultra-clear resolution. |
| * | Swann SWPRO Full Range Compatible: Fully works with all SWPRO cameras. |
| * | Also works with most AHD, CVI, TVI, D1 Cameras from most brands. If the connector is a BNC Push and Turn Connector, this DVR should work. |
| * | 2TB Storage (included): MAX 10TB Single HDD. |
| * | Feature Rich Recorder supporting 8x Audio Inputs, IO In Outputs, HDMI, VGA, CVBS + Audio Outputs. |
| * | "IVSEC X" App: No Registration Required - Remote Access. |
| * | Compatible with the following Swann SWPRO Coaxial / BNC Cameras: SWPRO-1080MSB, SWPRO-5MPMSB, SWPRO-4KMSB, SWPRO-3MPMSB, SWPRO-H855, SWPRO-1080ZLB, SWPRO-735, SWPRO-530, SWPRO-510, SWPRO-580, SWPRO-642, SWPRO-660, SWPRO-670, SWPRO-781, SWPRO-836, SWPRO-842, SWPRO-1080FLB, SWPRO-T853, SWPRO-T852, SWPRO-T855, SWPRO-T856, SWPRO-T858, SWPRO-A850, SWPRO-A851, SWPRO-A852, SWPRO-A853, SWPRO-H850, SWPRO-H851, SWPRO-H852, SWPRO-H853, SWPRO-H855, SWPRO-H856, SWPRO-1080SLB, SWPRO-1080FLB, SWPRO-1080DLB, SWPRO-T800, SWPRO-900, SWPRO-905, SWPRO-950, SWPRO-975, SWPRO-1020, SWPRO-1045, SWPRO-1080HDCB, SWPRO-1080HDCB-W, SWPRO-4KHDCB, SWPRO-4KHDCB-W, SWPRO-4KMSD, SWPRO-4KMSD-W, SWPRO-4KTB, SWPRO-4KTB-W, SWPRO-4KTF, SWPRO-4KTF-W, SWPRO-1080PZ, SWPRO-3MPPTZ, SWPRO-4MPPTZ, SWPRO-2KMSB, SWPRO-4MPMSB, SWPRO-5MPPTZ, SWPRO-5MPTZ, SWPRO-4KFLB, SWPRO-4KDLB, SWPRO-4KFLB-W, SWPRO-4KDLB-W, SWPRO-1080ZLD, SWPRO-1080ZLD-W, SWPRO-4KHZ, SWPRO-1080SLD, SWPRO-4KMSW, SWPRO-4KMSB-W, SWPRO-1080SD, SWPRO-5MDC, SWPRO-4KMSD2, SWPRO-4KMSP, SWPRO-4KMSP-W, SWPRO-1080P-HW, SWPRO-4K-IR, SWPRO-2KIR, SWPRO-4K-PIR, SWPRO-PTZ-4K, SWPRO-1080FLD, SWPRO-1080W, SWPRO-A970, SWPRO-A971, SWPRO-A972, SWPRO-5MPFLB, SWPRO-4MFLB |
System Specifications
Maximum Channels:
8
Maximum Video Resolution (MP)
8MP
Ex. of Channels at a resolution with FPS
96 Mbps
Power Supply:
H.264, H.264+, H.265, H.265+, MJPEG
Video Output Resolution
4K, HD-1080p, HD-720p, 1.3 MP, D1, VGA
Intelligent Video (Dependant On Camera)
Perimeter Intrusion Detection, Face Recognition, Human & Vehicle Detection, Line Crossing
Detection, Stationary Object Detection, Crossing Counting, Heat Map, Crowd Density Detection,
Queue Length Detection, License Plate Detection, Rare Sound Detection, Video Tampering,
License Plate Recongnition
Detection, Stationary Object Detection, Crossing Counting, Heat Map, Crowd Density Detection,
Queue Length Detection, License Plate Detection, Rare Sound Detection, Video Tampering,
License Plate Recongnition
Search Method
Continuous, Scheduling, Event Triggered By IVS filtering. Snapshot Searching, Tagging footage, Time Lapse,
Slice (Multiple Snapshot Thumbnail Search Per Hour), General (Indicated Timeline Seach).
Slice (Multiple Snapshot Thumbnail Search Per Hour), General (Indicated Timeline Seach).
Total Storage Potential (TB)
10
HDD Bays, Size
Bays x 1, up to 10TB per HDD
Software
Device Search, Config Tool, Surveillance Client (CMS, VMS), "IVSEC X" Mobile app
Protocols
TCP, IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP, RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SMTP,
P2P (QR code)
P2P (QR code)
Language
English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russia, Hebrew,
Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish
Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish
Audio Streaming
Two Way
Non Power Over Ethernet Ports
1
Power Supply
DC 12V, 2A
Power Consumption
11W (Without HDD)

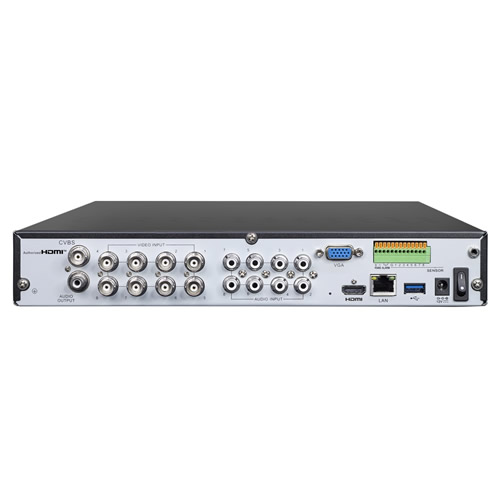

Connectors
HDD: 3.5" SATA HDD Slot x 1, USB2 Female x 2, Gigabit Ethernet: RJ-45 Port x 1 and 8 x BNC
ports, HDMI, VGA, Audio in and out, Power Jack input, On off switch
ports, HDMI, VGA, Audio in and out, Power Jack input, On off switch
Operating Environment
-10ºC to 50ºC (14ºF-122ºF) Humidity: 90% RH
In The Box
Printed quick installation guide, Mouse, Power supply.
Product Dimensions (H x W x L) mm
53 x 300 x220
Packaging Dimensions (H x W x L) mm
100 x 430 x 270
Weight (Net) kg
1.70
Weight (Gross) kg
2.00
Warranty
3 Years Parts and Labour Warranty

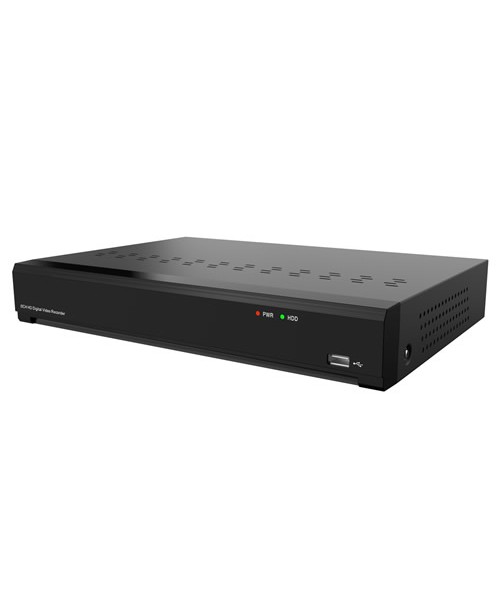

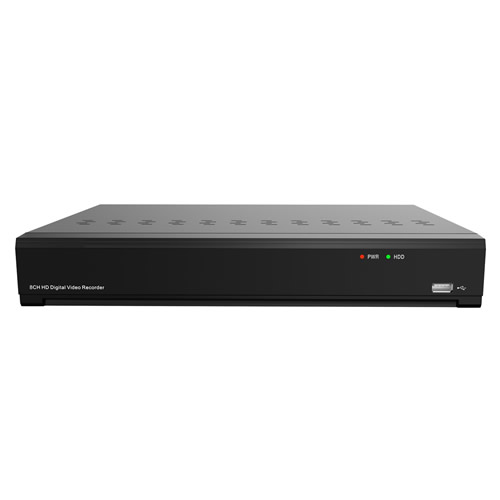

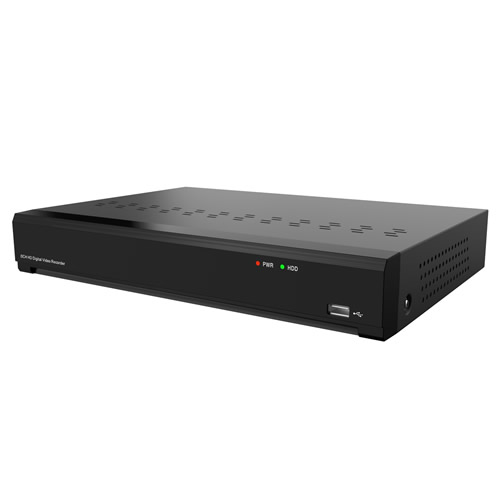

Ivsec 8-Channel 2TB HDD 4K Ultra HD DVR - DVR8-5000
- Brand: Swann
- Product Code: DVR8-5000
- Availability: In Stock
-
$545.00
