IVSEC - IVNC522XA

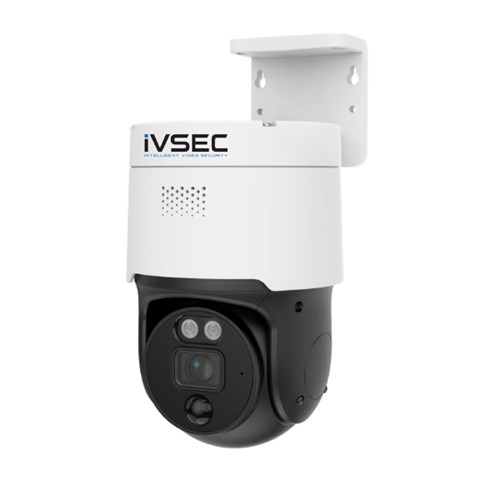

IVSEC SPEED DOME, 8MP, 2.8-12MM LENS MOTORISED, POE, IP66, 30M IR, SPEAKER, PTZ
NC522XA Security Camera
8MP (4K) Pan tilt and zoom cameras that is affordable! Great deterrent.
| Camera Type |
PTZ |
| Image Sensor |
1/2.7″ Progressive CMOS |
| Maximum Video Resolution (Megapixels) |
8 |
| Maximum Video Resolution |
3840 x 2160 |
| Lens |
2.8mm – 12mm (H.FOV: 113 to 31.4°) |
| Lens Type |
Motorised Pan, tilt and Zoom |
| Maximum Night IR Distance (M) |
30 |
| Video Compression |
H.265+, H.265, H.264+, H.264, MJPEG |
| ONVIF depends on firmware version |
ONVIF( Profile S/G/T) 21.12 or greater, Http API |
| IP Rating |
IP66 |
| Operating Environment |
-20ºC to 60ºC (14ºF-140ºF) Humidity: 90% RH |
| Dimensions |
Ø166.75 × 238 mm |
| Weight (Net) |
1 |
| Accessories |
n/a |
| Power Supply |
Power over Ethernet IEEE 802.3at, DC12V |
| Power Consumption |
<13W |
| Connectors |
RJ-45 , DC Power Input, reset button |
| Outdoor Use |
Yes |
| IP Rating |
IP66 |
| Vandal Resistant |
No |
| Frame Rate at Resolution |
25 |
| Day/Night Mode |
Auto |
| Image Enhancement |
Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Mirror, Angle Flip, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction |
| Edge Recording microSD/SDHC Card |
Micro SD/SDHC Card |
| Multiple Streams (encode format) |
3 Streams |
| Audio Streaming |
Yes (microphone and speaker included) |
| Protocols |
TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SMTP, P2P (QR code) |
| Intelligent Video (IVS) |
Face Recognition, Human & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection |
| Cloud option (camera only) |
Dropbox |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code) |
| Power Over Ethernet |
Yes |
| Ethernet |
Ethernet (10/100 Base-T) |
| In The Box |
Free Software available from FTP, Printed quick user guide, Installation template, Mounting screws and plugs |
| Warranty |
3 Year Warranty |
|
