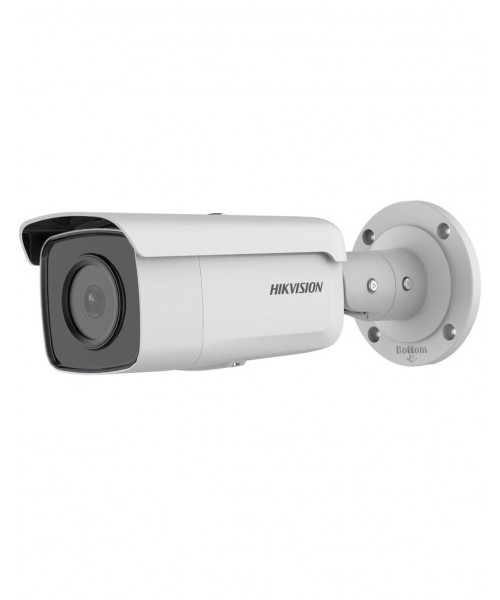

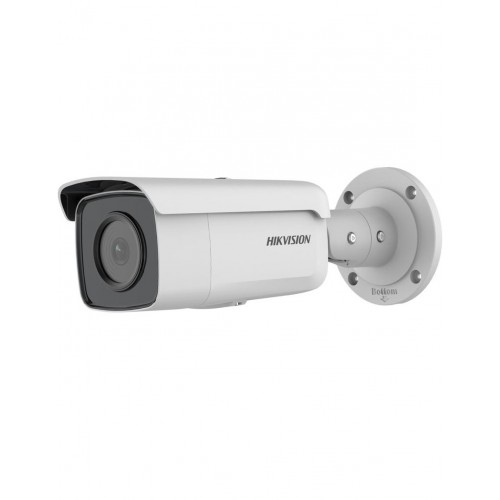

The Hikvision DS-2CD2T86G2-2I is an 8MP (4K) bullet network camera featuring AcuSense technology for advanced human and vehicle detection. It includes infrared night vision (up to 60m) for clear imaging in low-light conditions. With 120 dB WDR, H.265+ compression, IP67 weatherproofing, and PoE support, this camera delivers high-quality and efficient surveillance for outdoor security applications.

Camera

• Image Sensor: 8MP Progressive Scan CMOS

• Resolution: 3840 × 2160 (4K)

• Min. Illumination:

  • Color: 0.003 Lux @ (F1.6, AGC ON)

  • B/W: 0 Lux with IR

• Shutter Speed: 1/3 s to 1/100,000 s

• Lens Options: Fixed 2.8mm / 4mm / 6mm

• Field of View (FOV):

  • 2.8mm: Horizontal 102°, Vertical 54°, Diagonal 124°

  • 4mm: Horizontal 88°, Vertical 45°, Diagonal 103°

  • 6mm: Horizontal 56°, Vertical 31°, Diagonal 65°

• Day/Night Mode: IR-Cut Filter

• Wide Dynamic Range (WDR): 120 dB

Illumination & Smart Features

• Infrared (IR) Range: Up to 60m

• AcuSense Technology: Human & Vehicle Detection

• 3D Digital Noise Reduction (DNR): Yes

• Backlight Compensation (BLC): Yes

Video & Compression

• Main Stream: 8MP (3840 × 2160) @ 25/30 fps

• Compression: H.265+, H.265, H.264+, H.264

• Smart Encoding: ROI (Region of Interest)

• Bitrate Control: CBR/VBR

Network & Integration

• Ethernet: RJ-45 10M/100M Adaptive

• Protocols: TCP/IP, HTTP, HTTPS, FTP, NTP, RTSP, SMTP, UPnP, etc.

• Storage: MicroSD card slot (up to 256GB)

• ONVIF & Hik-Connect Support

Audio & Alarm

• Built-in Microphone: No

• Alarm Input/Output: 1 input / 1 output

General

• Power Supply: 12V DC / PoE (802.3af)

• Power Consumption: Max. 10W

• Operating Conditions: -30°C to 60°C (-22°F to 140°F), Humidity ≤ 95%

• Protection: IP67 (Weatherproof)

• Dimensions: Approx. 109.5 × 109.5 × 272.6 mm

• Weight: Approx. 1.1 kg
